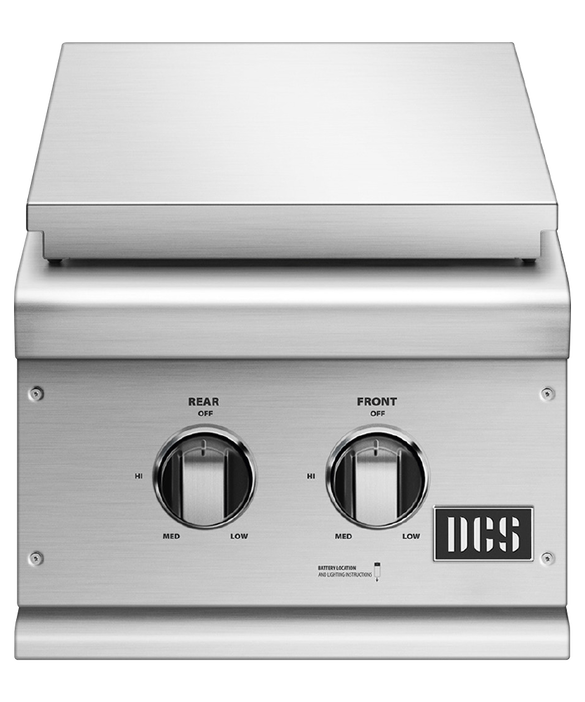

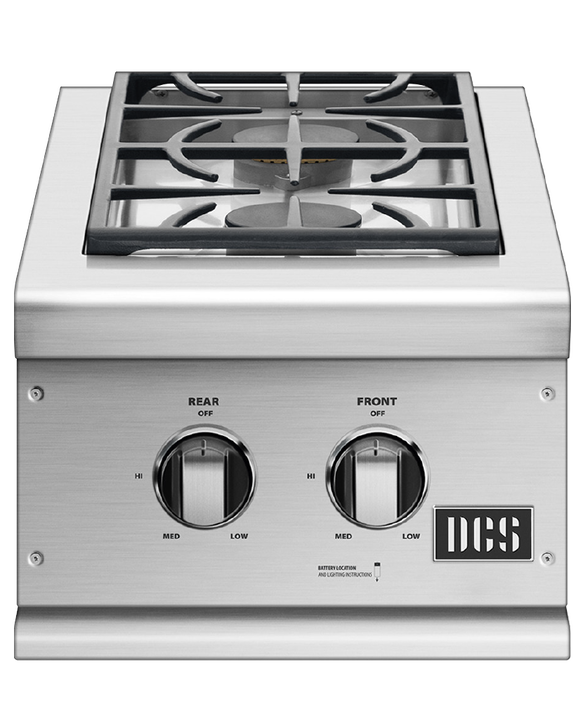

DCS - 14" Series 7 Double Side Burner, NG

The dedicated DCS Side Burners allow separate cooking activities to take place alongside the grill. Constructed of heavy stainless steel, DCS side burners are rated at a powerful 17,000 BTUs, and are available in single or double burner configurations. Available in Natural and LP Gas.

SPECIFICATIONS

Burners
Number of side burners    2

Features
Ignition system    Spark
Metal dials

Finish
Material    304 grade stainless steel
Weather resistant

Gas Requirements
1/2" NPT male with 3/8" in flare adapter
Gas type    NG
Operational pressure    4" W.C.
Supply Pressure    6" to 9" W.C

Installation Dimensions
Cutout depth (proud)    22 3⁄4"
Cutout height (proud)    10 1⁄8"
Cutout width (proud)    12 1⁄8"

Performance
Side burner power    17000 BTU

Power requirements
Grill power supply    1.5V battery for ignition

Product dimensions
Depth    26 5⁄8"
Height    10 5⁄8"
Packaged weight    32lbs
Width    14 9⁄16"

Warranty
Parts and labor    2 years
