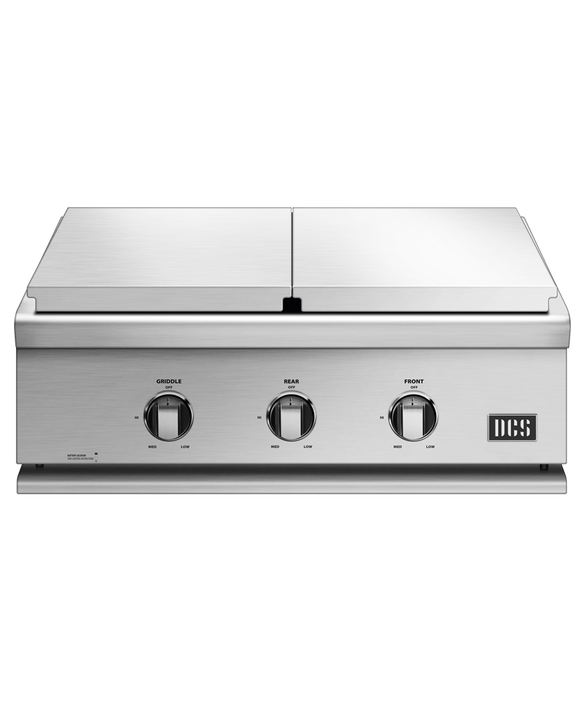

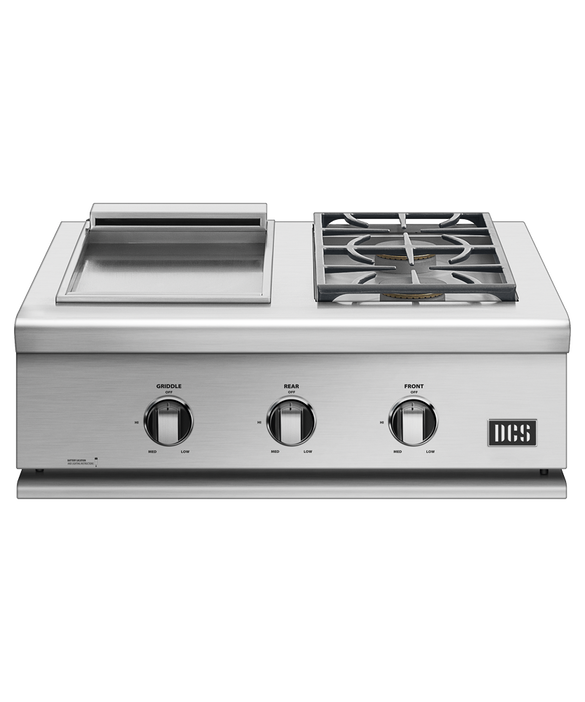

DCS - 30" Series 7 Double Side Burner/ Griddle NG

30" Series 7 Double Side Burner/ Griddle NG - BFGC-30BGD-N

With the Dual Side Burner/Griddle unit of the Liberty Collection you have the ability to prepare delicious dishes that are not customarily cooked outside. Add pancakes and bacon to your outdoor breakfast menu with ease using the large griddle surface. This unit even allows you to effortlessly host an omelet bar in your outdoor kitchen. Available in Natural or LP Gas. Cart sold separately.

SPECIFICATIONS

• Depth    26 5⁄8"

• Height    10 1⁄2"

• Packaged weight    104lbs

• Width    30"

• Optional cart mount: CAD1-30E

• Number of U-burners: 1

• Number of side burners: 2

• Ignition system: Spark

• Metal dials

• Side burners

• Material: 304 grade stainless steel

• Weather resistant

• 1/2" NPT male with 3/8" in flare adapter

• Gas type: NG

• Operational pressure: 4" W.C.

• Supply Pressure: 6" to 9" W.C.

• Griddle power: 12000 BTU

• Side burner power: 17000 BTU

• Grill power supply: 9V Battery for Ignition

Installation Dimensions

• Cutout depth (proud) 22 3/4 "

• Cutout height (proud) 10 1/8 "

• Cutout width (proud) 28 1/2 "
