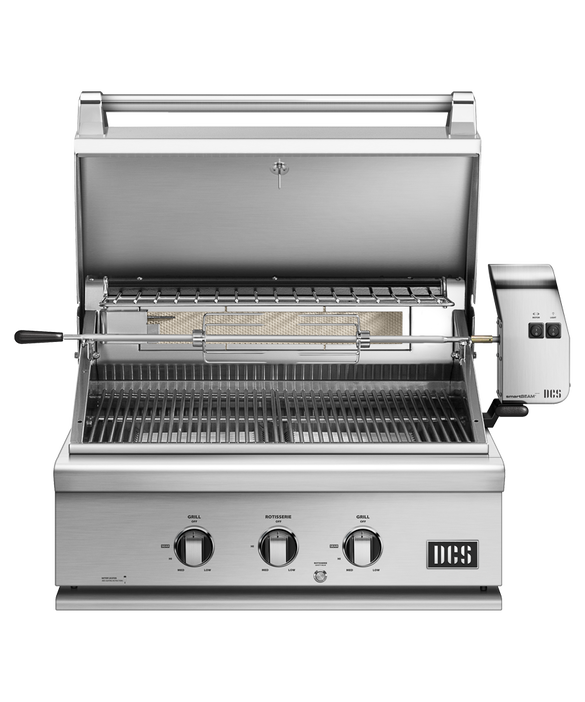

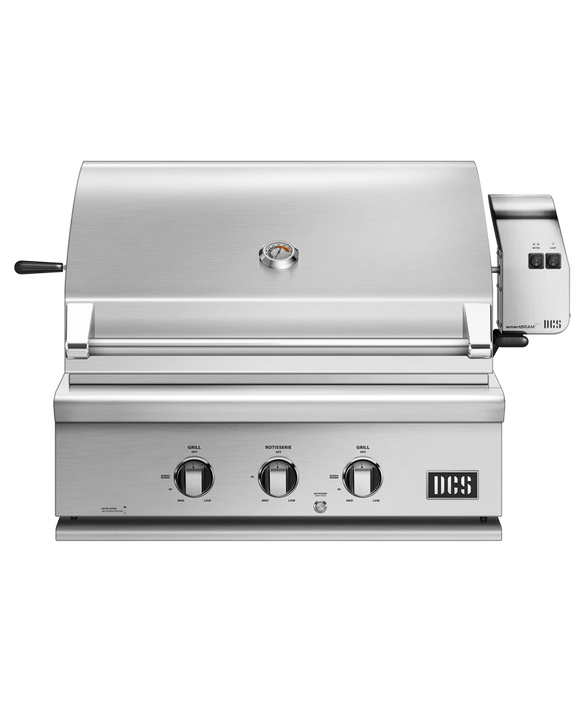

DCS - 30" Series 7 Grill NG/LP

30" Series 7 Grill NG/LP - BH1-30R-NG/LP

Designed with flexibility in mind, DCS Grills allow you to cook a wide variety of meals and are engineered to deliver the functionality and power demanded by a professional chef. DCS Grills are hand-finished to perfection to complement the quality of the DCS premium outdoor kitchen and built to withstand the demands of the serious cook and the extremes of mother nature. Available in Natural and LP Gas.

SPECIFICATIONS

• Depth    26 5⁄8"

• Height    24 1⁄4"

• Width    30"

• Built-in grill cover: ACBI-30

• Insulated jacket: BGB30-IJS (optional)

• On cart grill cover: ACC-30

• Optional cart mount: CAD1-30 / BGB30-CSS

• Number of U-burners: 2

• Primary cooking area: 553sq.in.

• Total cooking area: 748sq.in.

• Warming rack area: 195sq.in.

• Full surface searing

• Hood temperature gauge

• Ignition system- Spark

• Metal dials

• Rotisserie

• Warming rack

• Material: 304 grade stainless steel

• Weather resistant

• Material: 304 grade stainless steel

• Weather resistant

• Grill power supply: 9V Battery for Ignition

• Rotisserie power supply: 120V 60Hz

• Griddle power: 25000 BTU

• Rotisserie burner power: 14000 BTU

• Total Power: 64000 BTU

• Weight rotisserie can handle: 50lbs

INSTALLATION DIMENSIONS

• Cutout depth (proud): 22 3⁄4"

• Cutout height (proud): 10 1⁄8"

• Cutout width (proud): 28 1⁄2"

• Insulated jacket for proud cut-out: Varies - check manual

Quick Reference Guide
