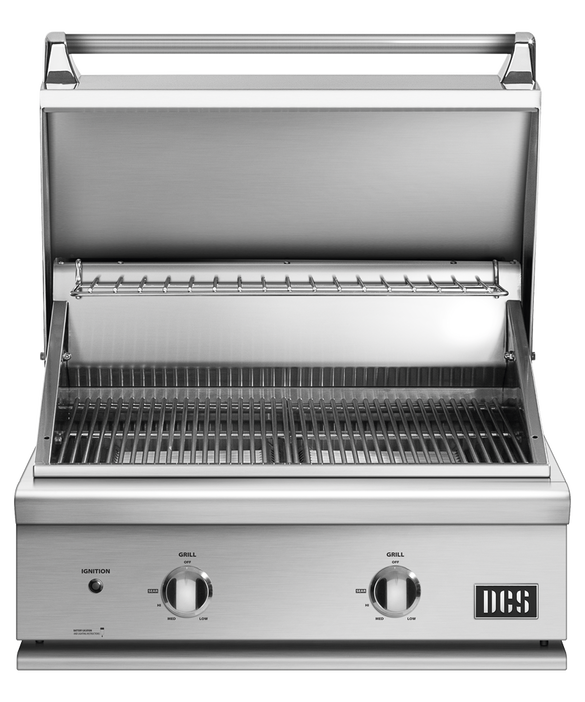

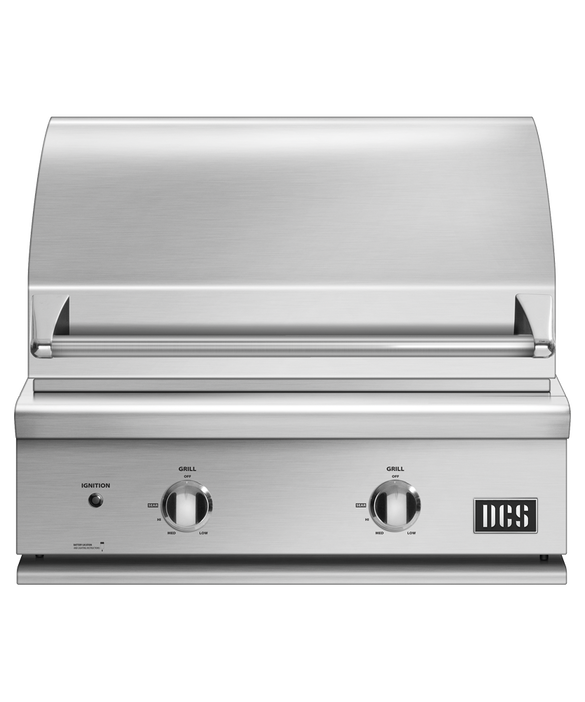

DCS 30" Series 7 Grill, Non Rotis NG/LP

30" Series 7 Grill, Non Rotis NG/LP - BGC30-BQ-NG/LP

DCS Outdoor Grills are simply the most advanced grilling system available for on-cart or built in applications. At DCS we combine the latest grilling technology and innovation to deliver the ultimate in outdoor cooking performance and control. Every DCS Grill is handcrafted and constructed entirely of heavy gauge type 304 stainless steel. Available in Natural and LP Gas.

SPECIFICATIONS

Depth    26 5⁄8"
Height    24 1⁄4"
Width    30"
Built-in grill cover: ACBI-30
Insulated jacket: BGB30-IJS (optional)
On cart grill cover: ACC-30
Optional cart mount: CAD1-30 / BGB30-CSS
Material:  304 grade stainless steel
Weather resistant
Griddle power:  25000 BTU
Total Power:  50000 BTU
Number of U-burners:  2
1/2" NPT male with 3/8" in flare adapter
Gas type:  NG
Operational pressure:  4" W.C.
Supply Pressure: 6" to 9" W.C.
Primary cooking area: 553sq.in.
Total cooking area: 748sq.in.
Warming rack area:  195sq.in.
Full surface searing
Ignition system:  Spark
Warming rack
Grill power supply: 9V Battery for Ignition
Griddle power:  25000 BTU
Total Power: 50000 BTU

INSTALLATION DIMENSIONS

Cutout depth (proud): 22 3⁄4"
Cutout height (proud): 10 1⁄8"
Cutout width (proud):28 1⁄2"
Insulated jacket for proud cut-out    varies - check manual

Quick Reference Guide
