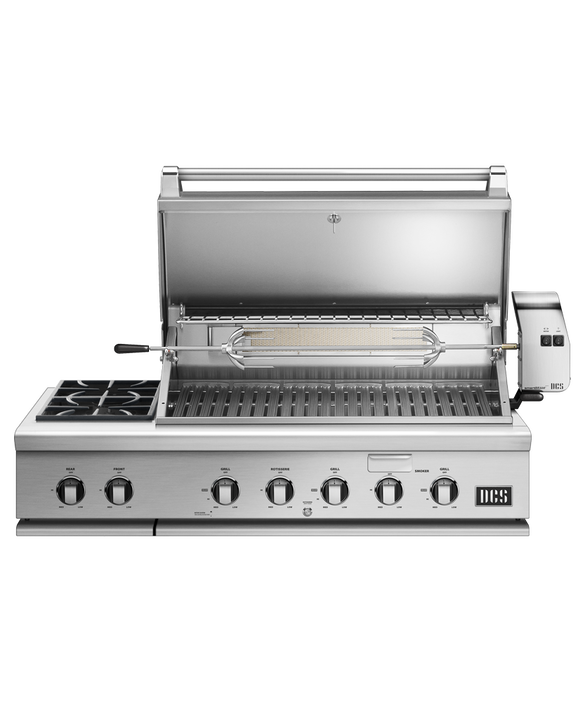

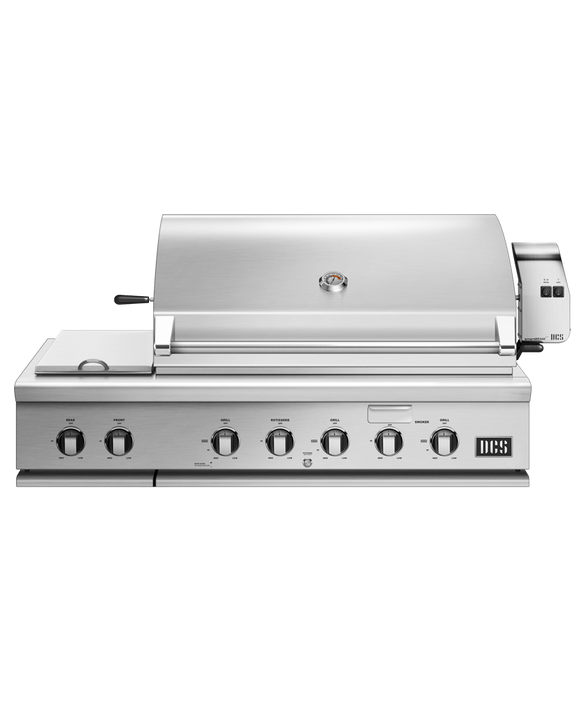

DCS - 48" Series 7 Grill with Integrated Side Burners, NG
Designed with flexibility in mind, DCS Grills allow you to cook a wide variety of meals and are engineered to deliver the functionality and power demanded by a professional chef. DCS Grills are hand-finished to perfection to complement the quality of the DCS premium outdoor kitchen and built to withstand the demands of the serious cook and the extremes of mother nature. Available in Natural and LP Gas.
SPECIFICATIONS
- Depth 26 5⁄8"
- Height 24 1⁄4"
- Width 47 7⁄8"
- Grill power supply: 9V Battery for Ignition
- Rotisserie power supply: 120V 60Hz
- Griddle power: 25000 BTU
- Rotisserie burner power: 14000 BTU
- Side burner power: 17000 BTU
- Smoker burner power: 3500 BTU
- Total Power: 126500 BTU
- Weight rotisserie can handle: 50lbs
- 1/2" NPT male with 3/8" in flare adapter
- Gas type: NG
- Operational pressure: 4" W.C.
- Supply Pressure: 6" to 9" W.C.
- Material: 304 grade stainless steel
- Weather resistant
- Double sided Stainless Steel grilling grates
- Full surface searing
- Grease management system™
- Hood temperature gauge
- Ignition system: Spark
- Metal dials
- Rotisserie
- Side burners
- Smoker
- Warming rack
- Primary cooking area: 630sq.in.
- Side burner area: 244sq.in.
- Total cooking area: 1115sq.in.
- Warming rack area: 241sq.in.
- Number of U-burners: 3
- Number of side burners: 2
- 6" accessory storage: ASH6-48
- Built-in grill cover: ACBI-48SB
- Griddle plate: BGC-GP
- Hybrid IR burner: BGC-IR
- Insulated jacket: BGA48-IJS (optional)
- Insulated jacket (if accessory storage unit used): BGA54-IJS (optional)
- On cart grill cover: ACC-48SB
- Optional cart mount: CAD1-48
INSTALLATION DIMENSIONS
- Cutout depth (proud): 22 3⁄4"
- Cutout height (proud): 10 1⁄8"
- Cutout width (proud): 45 3⁄4"
- Insulated jacket for proud cut-out
